Graule KS
The Ultimate Heavy Duty Small Mitre Saw
**240V Machines Ex Stock for Quick UK Delivery or Collection 15/04/26)**

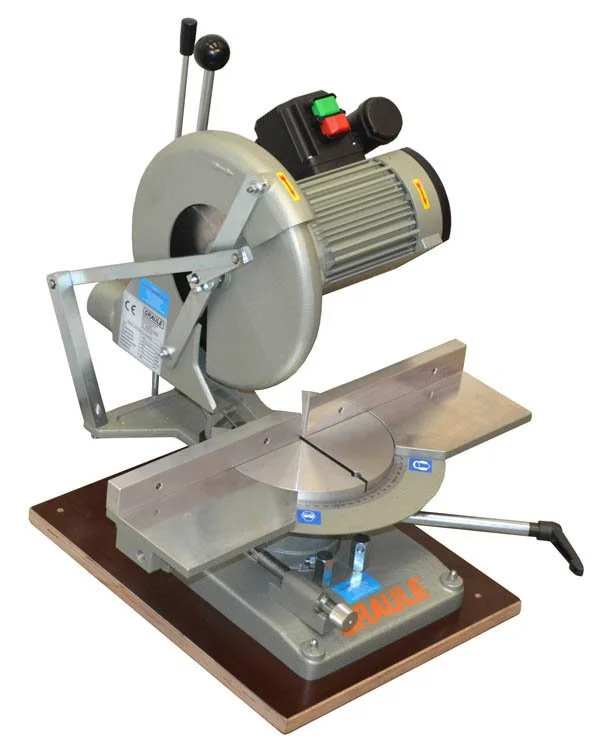

Graule KS Ultra Heavy Duty Bead Saw for Aluminium / PVC Beading
The Graule KS Mitre Saw is a very well German Made Small Mitre Saw Typically used for Aluminium or UPVC Window beading but can be used for the general mitring of profiles such as picture framing, wooden mouldings, Ali Extrusions etc.
Sturdy cast iron / Ali construction built to last (Not a portable machine)
Single or Three Phase
Optional Pneumatic clamps with manual or semi auto operation
Very User Friendly with good weight balance
Direct Drive Motor
An axis running in ball bearings on both sides is situated as rotation fulcrum beneath the supporting table thus assisting material cut rapid mitre setting up to 45 re adjustable positive stops lower saw blade protection suitable for connection with suction plant
UKCA marking
(Shown with Optional Pneumatic Clamps)
Technical Data:
Ideal for UPVC or Aluminium Beading
Show With Optional Pneumatic Clamps
SAW BLADE OPTIONS
Very High Quality Fine tooth 250mm Dia Saw Blade
Suitable for Graule KS Bead saw for fine cutting beading and similar profiles. Also suits similar machines
Suits Rapid Maschinenbau GMS Glazing Bead Saw
Art Number: 55833
Code: N5EAM06
250mm Diameter
30mm Bore
126 Teeth
2.4 Kerf
1.8 Plate Thickness
Negative Rake
Suitable for Aluminium and Plastics
Made in Sweden
ALL PRICES PLUS VAT AND DELIVERY

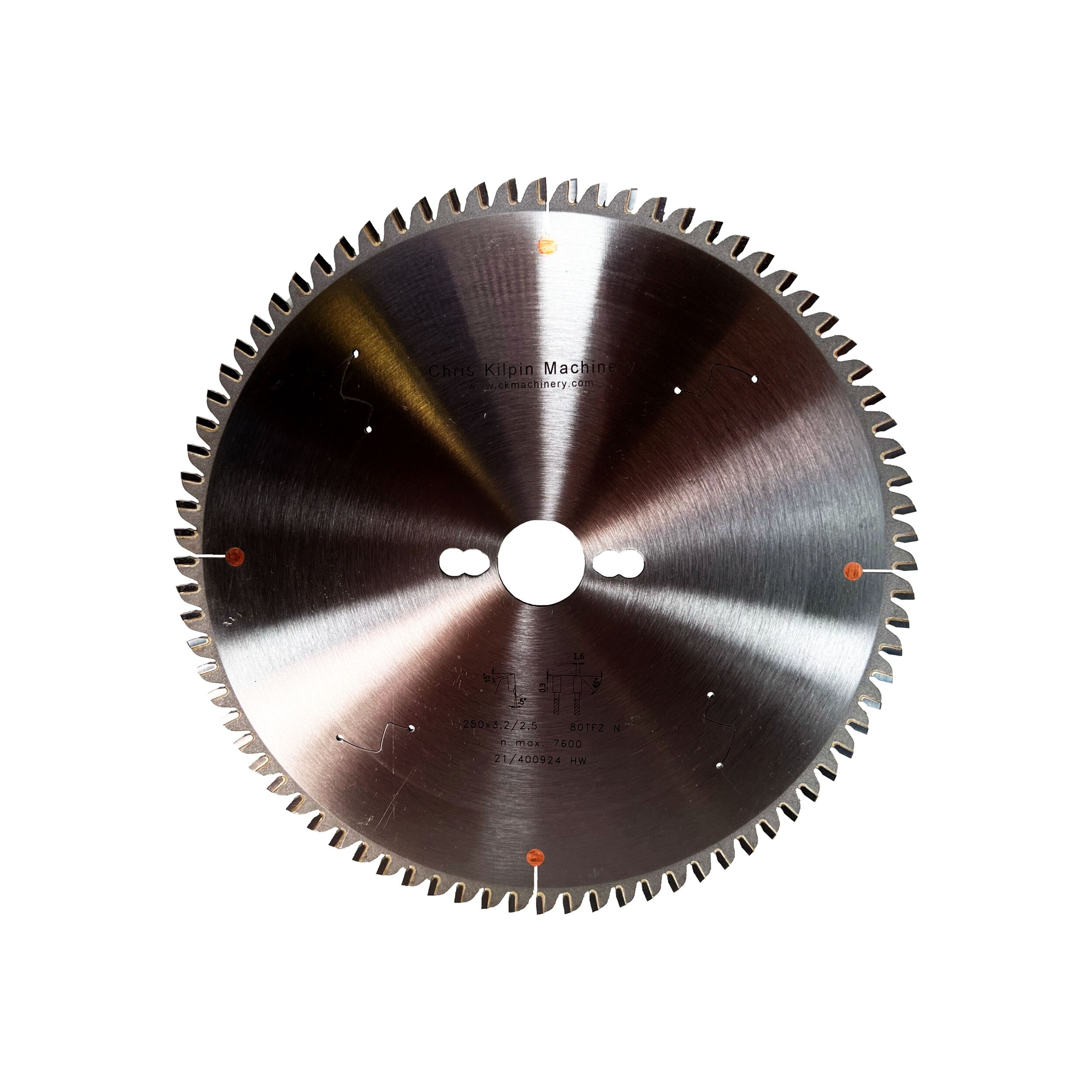

250mm diameter TCT saw blade 30mm bore
Standard 80 Tooth
Typically used on the Graule KS Bead Saw and other small bead / mitre saws
Ideal For Aluminium Beading / General Use
Suits Rapid Maschinenbau GMS Glazing Bead Saw
TCT Blade Details:
Used for: PVC, Aluminium
Rake Angle: Negative
Cutting width (mm): 3,2 Kerf
Bore Hole (mm): 30
Diameter (mm): 250
Teeth: 80
All prices plus VAT And Delivery
250mm diameter TCT saw blade 30mm bore
120T Fine toother TCT Tungsten Carbide Tipped Saw Blade
Typically used on the Graule KS Bead Saw and other small bead / mitre saws
Suits Rapid Maschinenbau GMS Glazing Bead Saw
TCT Blade Details:
Used for: PVC, Aluminium
Rake Angle: Negative
Cutting width (mm): 3,2 Kerf
Bore Hole (mm): 30
Diameter (mm): 250
Teeth: 120T
All prices plus VAT And Delivery
Typically Used for PVC and very delicate Ali Beading on machines like the Graule KS or some Horizontal twin blade semi auto bead saws
Bore Hole (mm): 32 / 30 (Please Specify in notes when ordering)
Diameter (mm): 250
Teeth: 180
Cutting width (mm): 2,0
All prices plus VAT And Delivery
Quick Angle Change for 45 - 90 - 45, Set with Solid Adjustable Bolts
Optional Pneumatic Clamps

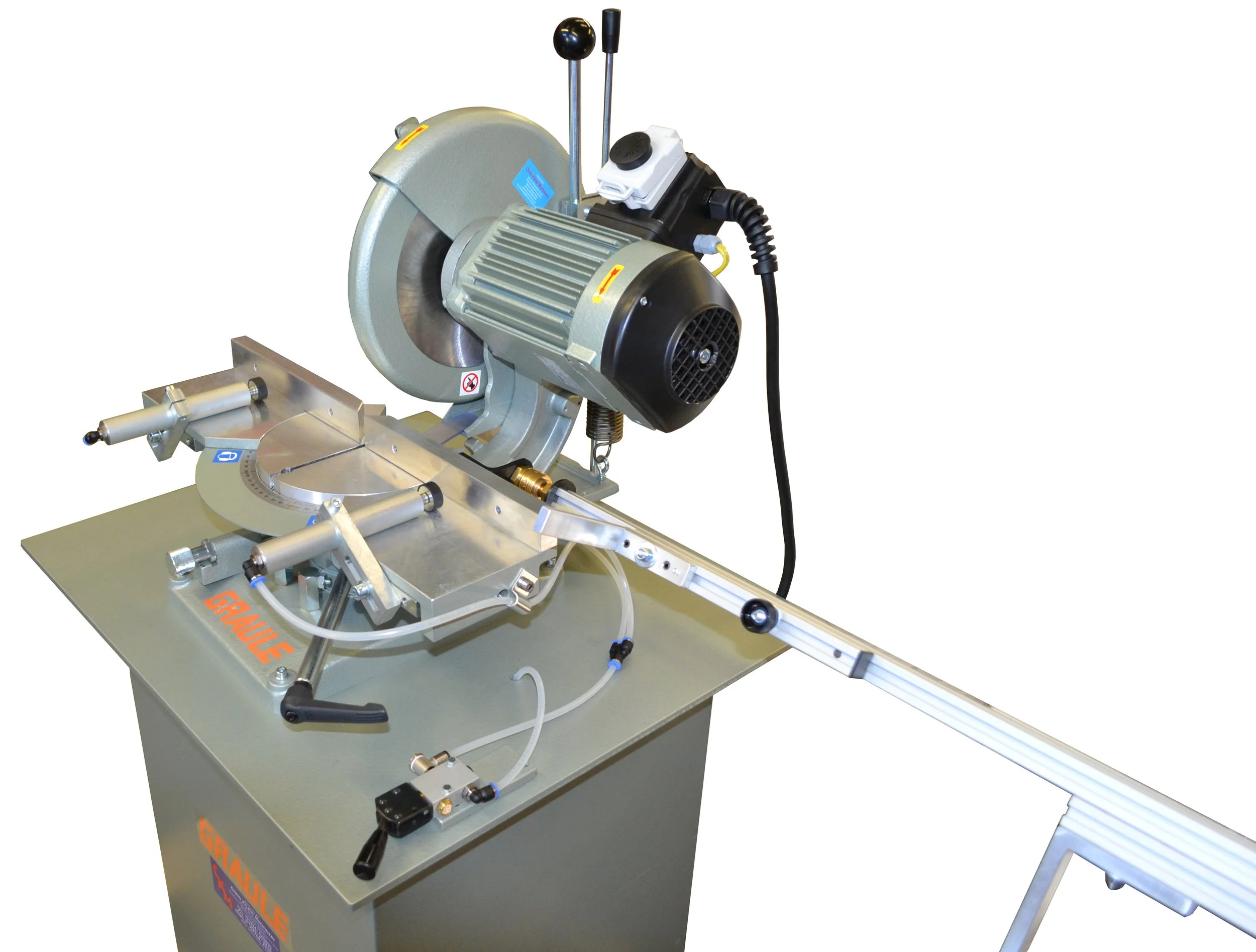

(Shown with Optional Stand, Bead stick and Pneumatic Clamps)
