Router Cutters
Cutters Stocked for Quick Delivery -Box Quantity Discounts on 4 Most Common Cutters
****
Cutters Stocked for Quick Delivery -Box Quantity Discounts on 4 Most Common Cutters ****

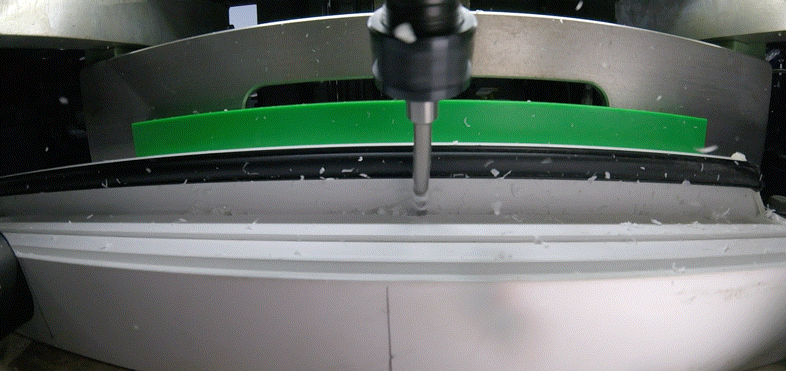

Router Cutters for Machining Aluminium and Plastic profiles for window manufacturing and general fabrication
5MM HSS Router Cutters:
5x16x45x90x8 Single Flute HSS-E Router Cutters
Our Most Popular Drainage cutter
5mm Cut 16mm Cutting Length 45mm Relief (Part of Body Reduced to Cutting width for plunging into material) 90mm Overall Length on a 8mm Shank
Typically used for Drainage slots and other smaller detail work, Most commonly used with PVC but also used with Aluminium
Single flute cutters HSS-E - stepped shank
For slotting and drilling in Aluminium- and UPVC-profiles
Used on copyrouters, drainage slot routers and CNC-machining-centres:
AFS, BJM, elumatec, Emmegi, FOM, Haffner, KABAN, Kombimatec, MLA, Pertici,
Pressta-Eisele, Rapid, Rotox, Schirmer, Striffler, TEKNA, Thorwesten, Wegoma, etc.
Speed approx. 8.000 - 20.000 rpm
Mist spray cooling spray is particularly important for aluminium working
Box Quantity Discounts on qty 5 and qty 10 Cutters
All Prices +VAT and Delivery, UK delivery Only
Made in Germany
Equivalent Ref. :76 0503, 76-0510, 76-0503, OM35283
5x18x35x80x8 Single Flute HSS Router Cutters
5mm Cut 18mm Cutting Length 35mm Relief (Part of Body Reduced to Cutting width for plunging into material) 80mm Overall Length on a 8mm Shank
Typically used for Drainage slots and other smaller detail work, Most commonly used with Aluminium but also used with PVC
Single flute cutters HSS-E - stepped shank
For slotting and drilling in Aluminium- and UPVC-profiles
Used on copyrouters, drainage slot routers and CNC-machining-centres:
AFS, BJM, elumatec, Emmegi, FOM, Haffner, KABAN, Kombimatec, MLA, Pertici,
Pressta-Eisele, Rapid, Rotox, Schirmer, Striffler, TEKNA, Thorwesten, Wegoma, etc.
Speed approx. 8.000 - 20.000 rpm
Mist spray cooling spray is particularly important for aluminium working!
Equivalent Ref. :76-0501 ,OM35459
Box Quantity Discounts on 5 and 10 qty Cutters
All Prices +VAT and Delivery
Made in Germany
5x14x35x120x8 Single Flute Router Cutter
5mm Cut 14mm Cutting Length 120mm Overall Length on a 8mm Shank
Typically used for UPVC or Ali when needing a deep plunge or extra length
All Prices +VAT and Delivery
Priced Per Cutter
Made in Germany
8MM HSS Cutters:
8x14x80x8 Single Flute HSS Router Cutters
8mm Cut 14mm Cutting Length 80mm Overall Length on a 8mm Shank
Typically used for Aluminium when only working on one face of the profile at a time
Box Quantity Discounts on 5 and 10 qty Cutters
All Prices +VAT and Delivery
Made in Germany
8x40x120x8 Single Flute Router Cutter
8mm Cut 40mm Cutting Length 120mm Overall Length on a 8mm Shank
Typically used for Aluminium or PVC for General Routing Tasks, Letter boxes and key holes etc.
Made in Germany
All Prices +VAT and Delivery
Priced Per Cutter
8x14x120x8 Single Flute HSS Router Cutters
8mm Cut 14mm Cutting Length 120mm Overall Length on a 8mm Shank
Typically used for UPVC or Ali when needing to go through the entire profile for letter boxes, key holes etc.
Probably our Most Common cutter
Box Quantity Discounts on 5 and 10 qty Cutters
All Prices +VAT and Delivery
Made in Germany
8x40x100x8 Twin Flute Spiral HSS
8mm Cut, 40mm Cutting Length, 100mm Overall Length on a 8mm Shank
Typically used for Aluminium or PVC for General Routing Tasks
For use in Manually operated or CNC Machines
Priced Per Cutter
Product Ref. :Promac 76 0806, 76-0806
Twin Straight Flute Version Also Available
All Prices +VAT and Delivery UK Shipping Only
8x40x120x8 Twin Straight Flute Coated Cutter Cutter HSS
Used for Aluminium or UPVC window Fabrication or General Routing tasks
Coated for better Durability
8mm Cut
Twin Straight Flutes
40mm Of cutting area
120mm Overall Length
8mm Shank
Ref code: 76-0813
All Prices Plus VAT and Delivery
Twin Straight Flute Router Cutter
8mm Cut 40mm Cutting Length 100mm Overall Length on a 8mm Shank
Typically used for Aluminium or PVC for General Routing Tasks
For use in Manually operated or CNC Machines
Priced Per Cutter
Twin Spiral Version Also Available
Product Ref. Codes: 76 0808, 76-0808
For More info please see the Router Cutters Page
All Prices +VAT and Delivery, UK Shipping Only
10mm, 12MM and 13mm HSS Cutters:
Trickle Vent Cutter 12x28x100x8 Single Flute Spiral
12mm Cut 28mm Cutting Length 100mm Overall Length on a 8mm Shank
Typically used for PVC Trickle Vents
Convenient 8mm Shank and body means it will fit most routers and with the 12mm fluted cutting section only comes out at the end means this cutter is unlikely to snap like most of the larger 12mm body cutters with a smaller 8mm reduced shank.
**NOT FOR ROUTING STEEL**
Cutter will not cut steel or cut through the profile and steel reinforcing in existing window frames
Part F of Building Regulations guidelines requiring Extra Ventilation means alot more Trickle Vent Prep work will need to be done. We Find this 12mm Cutter is ideal for alot of the 13mm Vents but if you have any other requirements please call or email .
All Prices +VAT and Delivery, UK Shipping only
UK Shipping only
Priced Per Cutter
Made in Germany
10x30/70x100x10 Single Flute Router Cutter HSS
10mm Cut, 30mm Cutting Length ,70mm Stepped Down Section to prevent Rubbing, 100mm overall Length, 10mm Shank
Used for General Prep work in uPVC or Aluminum
All Prices +VAT and Delivery
Priced Per Cutter
Trickle Vent Cutter / Night Vent 12x40x100x8 Single Flute Spiral
12mm Cut 40mm Cutting Length 100mm Overall Length on a 8mm Shank
Single Flute
Typically used for PVC Trickle Vents
Convenient 8mm Shank and body means it will fit most routers and with the 12mm fluted cutting section only comes out at the end means this cutter is unlikely to snap like most of the larger 12mm body cutters with a smaller 8mm reduced shank.
NOT FOR ROUTING STEEL
Cutter will not cut steel or cut through the profile and steel reinforcing in existing window frames
Part F of Building Regulations guidelines requiring Extra Ventilation means alot more Trickle Vent Prep work will need to be done
All Prices +VAT and Delivery
Priced Per Cutter
Product Ref. : 76-1212 , OM35165
Trickle Vent Cutter 12x40x100x8 Twin Flute Spiral
12mm Cut 40mm Cutting Length 100mm Overall Length on a 8mm Shank
Typically used for PVC Trickle Vents
Convenient 8mm Shank and body means it will fit most routers and with the 12mm fluted cutting section only comes out at the end means this cutter is unlikely to snap like most of the larger 12mm body cutters with a smaller 8mm reduced shank.
**NOT FOR ROUTING STEEL**
Cutter will not cut steel or cut through the profile and steel reinforcing in existing window frames
Part F of Building Regulations guidelines requiring Extra Ventilation means alot more Trickle Vent Prep work will need to be done
All Prices +VAT and Delivery
Priced Per Cutter
Product Ref. : 76-1202 , 76 1202
Trickle Vent Cutter 13x40x100x8 Twin Flute Spiral
35mm of 8mm Shank
13mm Cut 40mm Cutting Length 100mm Overall Length on a 8mm Shank
Typically used for PVC Trickle Vents
Convenient 8mm Shank and body means it will fit most routers and with the 13mm fluted cutting section.
**NOT FOR ROUTING STEEL**
Cutter will not cut steel or cut through the profile and steel reinforcing in existing window frames
Part F of Building Regulations guidelines requiring Extra Ventilation means alot more Trickle Vent Prep work will need to be done
All Prices +VAT and Delivery
Priced Per Cutter
Product Ref. : 76-1300 , 76 1300
Burrs and hand router Cutters:
3mm Dia and 3mm Shank
Carbide Burr
Approx 38mm Length
Used in Die Grinders / Dentist Drills for detail work, cleaning weld sprus, “tweaking” lock gear fitment
All Prices Plus VAT and Delivery
Milling cutter HSS-E, female thread M10 5x23x52 mm
for working UPVC-profiles with hand-routers
M10 Female Threaded
5mm Cut
23mm Cutting Area
52mm Long Over all
Used on Various hand held routers such as Suhner, Rotox, Sure, Striffler, STRIMA, etc
Known Ref Codes: 052 100 005, 77-0502
All Prices Plus VAT and Delivery
Ball Nosed Cylinder Burr, For use with Die Grinders
6mm Shank
10mm x 19mm Cut
65mm Long
Can be used to aid lock prep to enarlge / Modify the mounting hole
All Prices Plus VAT and Delivery
Espag Drills:
Set of Standard Espag / Triple Drill Unit Drills to Suit MLA Machines (and other Brands with same fitment and Rotation)
Piloted Drills Suitable for Aluminium or UPVC
M10 Threaded Fitment
87mm Overall Length
Sold in a Set of 3 Drills
MLA Copy Routers Typically: M10 10mm Right Hand / M10 12mm Left Hand / M10 10mm Right Hand
Typical Applications: MLA A24, MLA A23 and Other Copy Routers with the same Rotation and Fitment
All Prices Plus VAT and Delivery
Set of Standard Espag / Triple Drill Unit Drills to Suit Pertici Machines (and other Brands with same fitment and Rotation)
Piloted Drills Suitable for Aluminium or UPVC
M10 Threaded Fitment
87mm Overall Length
Sold in a Set of 3 Drills
Pertici Copy Routers : M10 10mm Left Hand / M10 12mm Right Hand / M10 10mm Left Hand
Typical Applications: Pertici FC101,FC106, FC102
All Prices Plus VAT and Delivery
Espag Drills to suit Infismac FC3/F Grub screw mount Copy Routers
Set of 3 HSS Drills
10mm outside and 12mm centre
Left hand 10s and right hand 12
Grub Screw Mounting
All Prices Plus VAT and Delivery
Set of Espag Drills to suit Wegoma F130 Grub screw mount Copy Routers
Set of 3 HSS Drills
10x100x8 Right Hand x2
12x100x8 Left Hand x1
Grub Screw Mounting
8mm Flatted Shank
All Prices Plus VAT and Delivery
Our Most Popular HSS Router Cutters
Most Common UPVC or Aluminum Window FABRICATION Router Cutters:
8x14x120x8 £13.28+VAT each (Box of 5 £65.89+VAT and Box of 10 £129.90+VAT)
8mm Cut 14mm Cutting Length 120mm Overall Length on a 8mm Shank
Typically used for applications requiring to route through one side of a profile to the other e.g. Night Vents and Letter Boxes
5x16x45x90x8 £15.35+VAT each (Box of 5 £75.95+VAT and Box of 10 £149.90+VAT)
5mm Cut 16mm Cutting Length 45mm Relief (Part of Body Reduced to Cutting width for plunging into material) 90mm Overall Length on a 8mm Shank
Typically used for Drainage slots and other smaller detail work, Most commonly used with PVC but also used with Aluminium
5x18x35x80x8 £14.99+VAT each (Box of 5 £73.50+VAT and Box of 10 £145+VAT)
5mm Cut 18mm Cutting Length 35mm Relief (Part of Body Reduced to Cutting width for plunging into material) 80mm Overall Length on a 8mm Shank
Typically used for Drainage slots and other smaller detail work, Most commonly used with Aluminium but also used with PVC
8x14x80x8 £12.20+VAT each (Box of 5 £60.50+VAT and Box of 10 £119.90+VAT)
8mm Cut 14mm Cutting Length 80mm Overall Length on a 8mm Shank
Typically used for Aluminium when only working on one face of the profile at a time
Sizing Guide
Sizing Code Order: AxBxCxDxE which then makes up the cutter code e.g “5x16x45x90x8”
“5mm cut size x 16mm cutting length x 45mm Relief x 90mm Overall Length x 8mm Shank”
This then means the name or code for the cutter is also its dimensions for simplicity and easy reference
For Router Cutters without relief will not list the “C” dimension e.g AxBxDxE “8x14x80x8”
“8mm cut size x 14mm cutting length x 80mm Overall Length x 8mm Shank”
Router Cutters for the Window Industry, Router Cutters / Drills Suitable for Copy Routers and CNC Machining Centres
Suitable for Aluminium Window Fabrication or uPVC Window Assembly
Most Router Cutters are Typically 8mm Shank and this is the Standard on Most machines especially the Traditional Copy Routers from Brands Such as Pertici, MLA or Elumatic
CNC Machines Tend to use Carbide Cutters and tend to match the shank to the cut size as due to to cost of carbide and also the ease of switching tools
Carbide Cutters Also Ordered Upon Request Please call or Email with Sizes Needed
Buy online Common STOCKED CUTTERS
Browse Router Cutters By Size:
Burrs for Die Grinders / Dentist Drills
3mm Dia and 3mm Shank
Carbide Burr
Approx 38mm Length
Used in Die Grinders / Dentist Drills for detail work, cleaning weld sprus, “tweaking” lock gear fitment
All Prices Plus VAT and Delivery
Ball Nosed Cylinder Burr, For use with Die Grinders
6mm Shank
10mm x 19mm Cut
65mm Long
Can be used to aid lock prep to enarlge / Modify the mounting hole
All Prices Plus VAT and Delivery
Corner Cleaner Gasket Clearance Cutters / T Slot Cutters - Please call or email for details

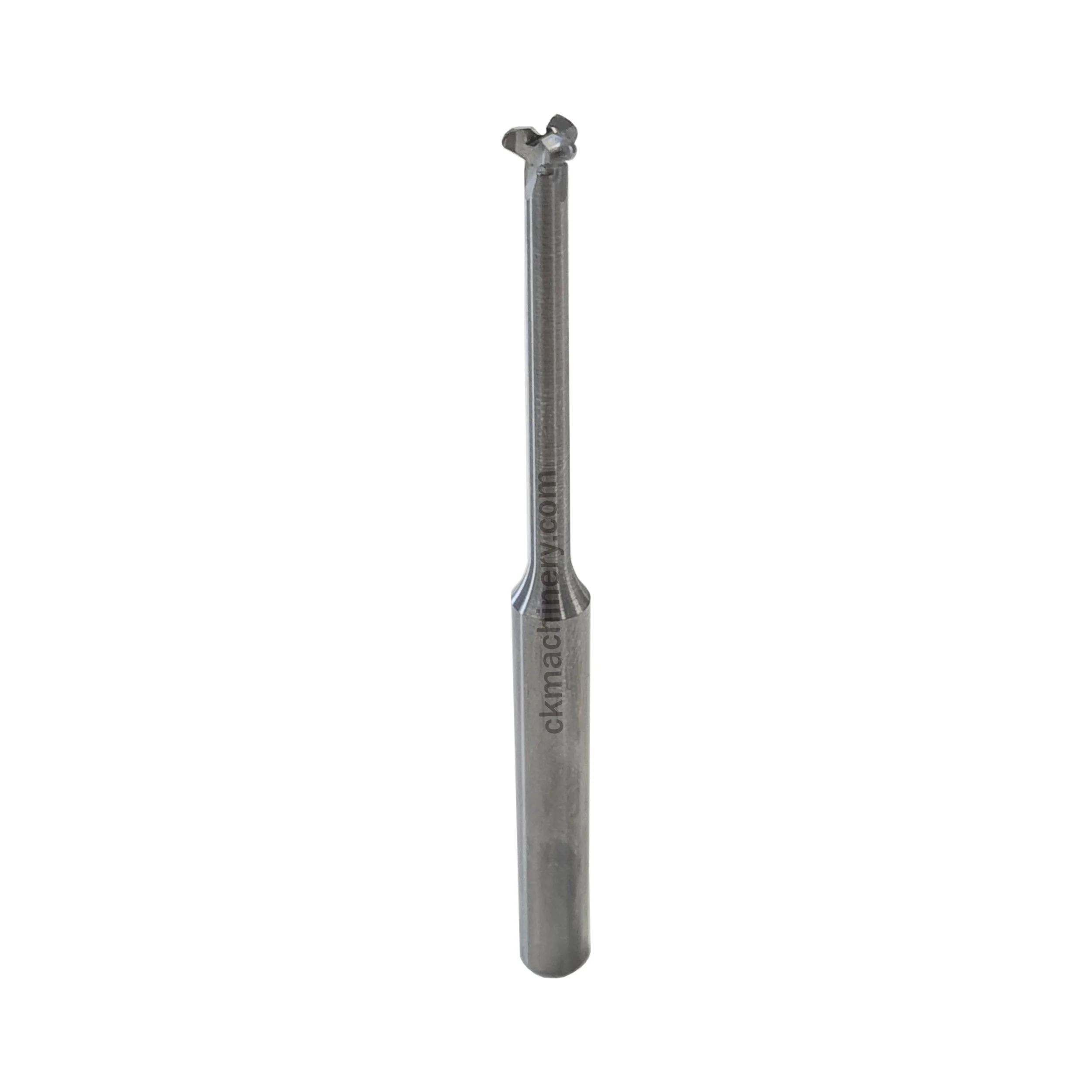

After Market Urban K010268 8x3.5 4x50x100 8mm 3 flute T-Slot Carbide
Carbide Rose Drill to suit Rotox QALL-03 7x0/25x100 8mm Carbide 3 Flute End Mill
POPULAR NON STANDARD CUTTERS
8x40x100x8 Twin Flute Spiral
Made in the UK
5x14x35x120x8 Single Flute Router Cutters
Made in Germany
10x45x100x10 Twin Straight Flute
Made in the UK
Trickle Vent Router Cutters
12x28x100x8 Single Flute Spiral
Ideal For Trickle Vent Prep Work
Made in the Germany
Part F of Building Regulations guidelines requiring Extra Ventilation means alot more Trickle Vent Prep work will need to be done. We Find this 12mm Cutter is ideal for alot of the 13mm Vents but if you have any other requirements please call or email .
13X40X100X8 TRICKLE VENT CUTTER
12X40X100X8 TRICKLE VENT CUTTER
8x40x100x8
Twin Straight Flute
8x40x120x8
Single Flute Spiral
Carbide cutters for cnc machines also sold

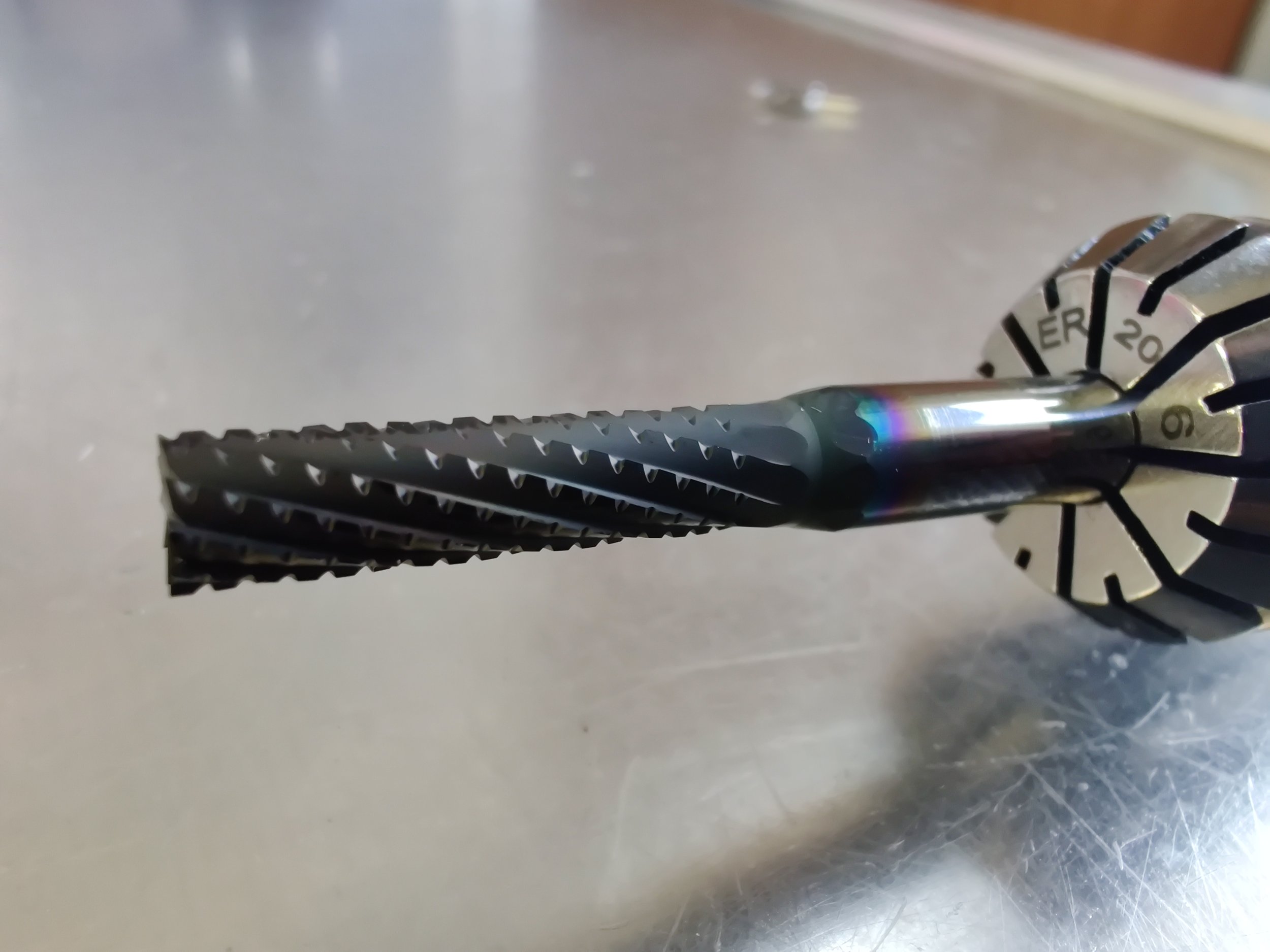

Special Purpose Router Cutters for Composites and Special Materials
Carbide and Coated Special purpose cutters typically used on Carbon fibre / Composite Materials Please Call or Email with your Requirements
How to Order
Please call or email with the Size of the cutter/s and quantity your after and we can reply with a Proforma Invoice with card payment link
Alternatively most cutters can be bought in the Shop
Tel. 01934 625850
Email: sales@ckmachinery.com
Extended Range Of Cutters
(Typically On short lead times please call or email for a quote or If your cutters not listed many more available, some cutters in stock clearance but alternatives usually available. )
Promac Part Codes Listed, these Promac Branded Window Industry Router Cutter bits will slowly be converted over to standard cutter codes as the manufacture sells out of the stock they had left after Promac went into administration as they produced the cutters for them and kept a stock pool for them in their own branding and unique coding. These will still be the same cutters from the same manufacture just with a different standard part code. Some Cutters that were only sold in small quantities will be either put on special order status or linked to the next equivalent size.
HSS Router Cutters Single Spiral and Router Cutters Single Spiral - with relief
Part No.
76-0300
76-0400
76-0401
76-0402
76-0411
76-0498
76-0501
76-0514
76-0528
76-0518
76-0509
76-0503
76-0510
76-0504
76-0503A
76-0523
76-0505
76-0507
76-0502
76-0600
76-0607
76-0602
76-0604
76-0800
76-0820
76-0804
76-0810
76-0803
76-0807A
76-1000
76-1006
76-1008
76-1005
76-1201
76-1210
Diameter
3
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
8
8
8
8
8
8
10
10
10
10
12
12
Flute Length
12
12
16
40
16
18
14
20
16
25
35
16
45
14
16
25
40
45
14
14
35
16
40
16
25
14
40
14
30
14
14
30
40
14
40
Reach Length
-
-
45
-
45
-
35
-
50
35
-
45
-
-
45
-
-
-
35
-
-
45
-
-
-
-
-
-
-
-
-
-
-
-
-
Overall Length
60
60
90
100
120
60
80
80
80
80
80
90
90
100
100
100
100
100
120
60
80
90
100
80
80
100
100
120
120
80
100
100
100
80
100
Shank Diameter
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
10
8
10
8
Router Cutters Twin Spiral
Part Number
76-0523A
76-0404A
76-0506
76-0515
76-0806
76-1005A
76-1203
76-1202
76-1300
76-0815
XSP00013259
Diameter
5
5
5
5
8
10
12
12
13
8
8
Flute Length
25
35
40
55
40
40
40
40
40
50
30
Overall Length
100
100
100
100
100
100
70
100
100
80
120
Shank Diameter
8
8
8
8
8
8
8
8
8
8
8
Router Cutters Twin Straight
Part Number
76-0409
76-0407
76-0525
76-0517
76-0519
76-0521
76-0404
76-0512
76-0817
76-0808
76-0806A
76-1209
Diameter
4
4
5
5
5
5
5
5
8
8
8
12
Flute Length
40
40
20
35
40
45
35
45
30
40
40
30
Overall Length
80
100
75
80
80
90
100
100
100
100
120
80
Shank Diameter
8
8
5
8
8
8
8
8
8
8
8
8
CARBIDE ROUTER CUTTERS
Part Number
76-0304
76-0408
76-0410
76-0526
76-0527
58-54500378-C
11-06-0007-021
58-54500386-C°
76-0610
76-0819
76-0823
76-0822
76-0814
76-0816
76-0816A
76-1009
58-8062
76-1011
76-1212
76-1600
11-06-0007-023C
11-06-0007-023° DT
58-54500366-C
58-54500081-C
11-06-0007-037
11-06-0007-038 *LH
58-54500102-C
Diameter
3
4
4
5
5
5
5
5
6
8
8
8
8
8
8
10
10
10
12
16
3+5
3+5
5
8
8
8
10
Flute Length
12
15
20
16
40
20
30
35
20
22
22
35
30
35
35
25
30
40
35
40
5+40
5+40
40
40
35
35
50
Overall Length
50
50
50
60
80
90
90
90
60
65
85
85
100
120
120
75
100
90
85
90
100
100
80
100
100
100
100
Shank Diameter
3
4
4
5
5
8
8
8
6
8
8
8
8
8
8
10
10
10
12
16
8
8
8
8
10
10
10
Router Cutters for Window Fabrication
At Chris Kilpin Machinery, we understand the critical role that router cutters play in the window fabrication industry. As such, we are dedicated to offering a wide range of high-quality and reliable router cutters that are specifically designed for window manufacturing. Our cutting-edge tools and expertise in the field make us your trusted partner in achieving precise and efficient window fabrication processes.
Precision and Accuracy
Window fabrication demands precision and accuracy to ensure the perfect fit and seamless operation of windows in residential, commercial, and industrial settings. Our router cutters are meticulously crafted to deliver flawless cutting performance. With sharp cutting edges and superior cutting profiles, our tools allow for clean and precise cuts, ensuring that each window component is manufactured to exact specifications.
Versatility and Customization
We recognize that window manufacturing involves a diverse range of materials, such as uPVC, aluminum, timber, and composite materials. To cater to these varied requirements, our router cutters are available in a wide selection of styles, sizes, and configurations. Whether you need tools for cutting window frames, sashes, mullions, or glazing beads, we have the perfect solution to meet your fabrication needs.
Additionally, we offer customization options to further tailor our router cutters to your specific requirements. Our knowledgeable team is ready to collaborate closely with you, providing expert advice and guidance in selecting the right tooling solution for your window fabrication processes.
Durability and Efficiency
Window fabrication often involves large-scale production, where reliability and efficiency are paramount. Our router cutters are engineered with durability and longevity in mind. Crafted from high-quality materials, these cutters are designed to withstand heavy usage and resist wear and tear, ensuring uninterrupted performance and maximizing uptime.
Furthermore, our router cutters are optimized for efficiency, enabling high-speed cutting while maintaining exceptional precision. By reducing downtime, minimizing material waste, and streamlining manufacturing processes, our tools contribute to improved productivity and profitability for your window fabrication business.
