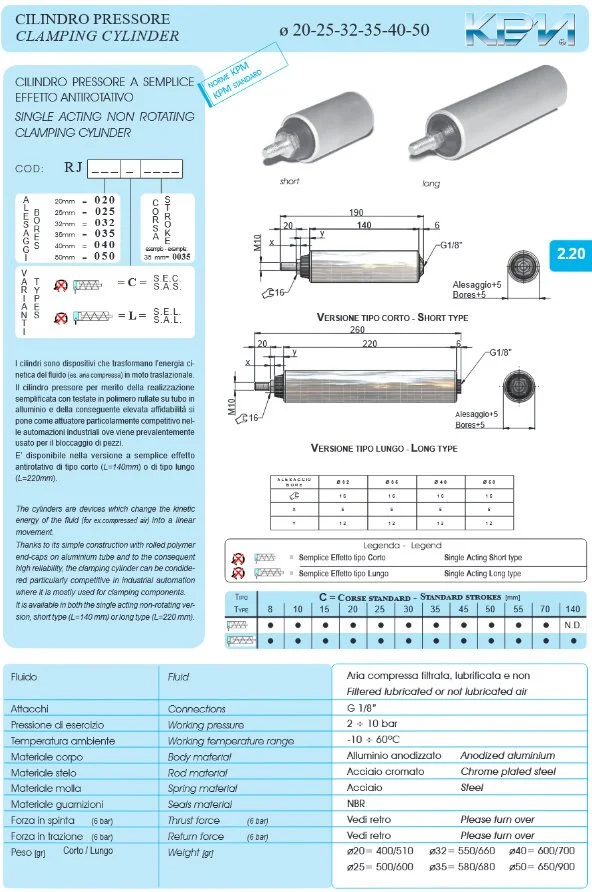

KPM_CARPI_Clamp_Cylinder_Spec pneumatic
KPM Clamp Cylinder
KPM Hex Rod 150mm Long Clamp Cylinders RJ035C0070 kpm carpi
kpm carpi
kpm carpi
Window Machine Clamp kpm carpi
KPM Hex Rod 150mm Long Clamp Cylinders RJ035C0070 kpm carpi
kpm carpi clamp
Replacement Pneumatic Clamps
Window Machinery Clamping
KPM_CARPI_Clamp_Cylinder_Spec pneumatic

KPM Clamp Cylinder 40mm Dia 150mm Short

£54.99

KPM Carpi Hex Rod 150mm Long Clamp Cylinders RJ035C0070

Will Measure Approx 190mm Long end to end with a clamp pad attached

  • 40mm Dia

  • Body approx 150mm

  • 70mm Rod Stroke

  • Hexagonal non Rotating Rod

  • M10 Male Threaded (Takes a M10 Female Clamp Pad)

  • 1/8 Bsp Air Port

  • Single Acting Spring Return

Priced Per Cylinder

Clamp Pads and Air Fittings Sold Separately

Clamp Pads to Suit:

40mm dia M10 Female Rubber Clamp Pads

Commodity Code: 84123100

All Prices +VAT and Delivery

KPM Carpi Hex Rod 150mm Long Clamp Cylinders RJ035C0070

Will Measure Approx 190mm Long end to end with a clamp pad attached

  • 40mm Dia

  • Body approx 150mm

  • 70mm Rod Stroke

  • Hexagonal non Rotating Rod

  • M10 Male Threaded (Takes a M10 Female Clamp Pad)

  • 1/8 Bsp Air Port

  • Single Acting Spring Return

Priced Per Cylinder

Clamp Pads and Air Fittings Sold Separately

Clamp Pads to Suit:

40mm dia M10 Female Rubber Clamp Pads

Commodity Code: 84123100

All Prices +VAT and Delivery
