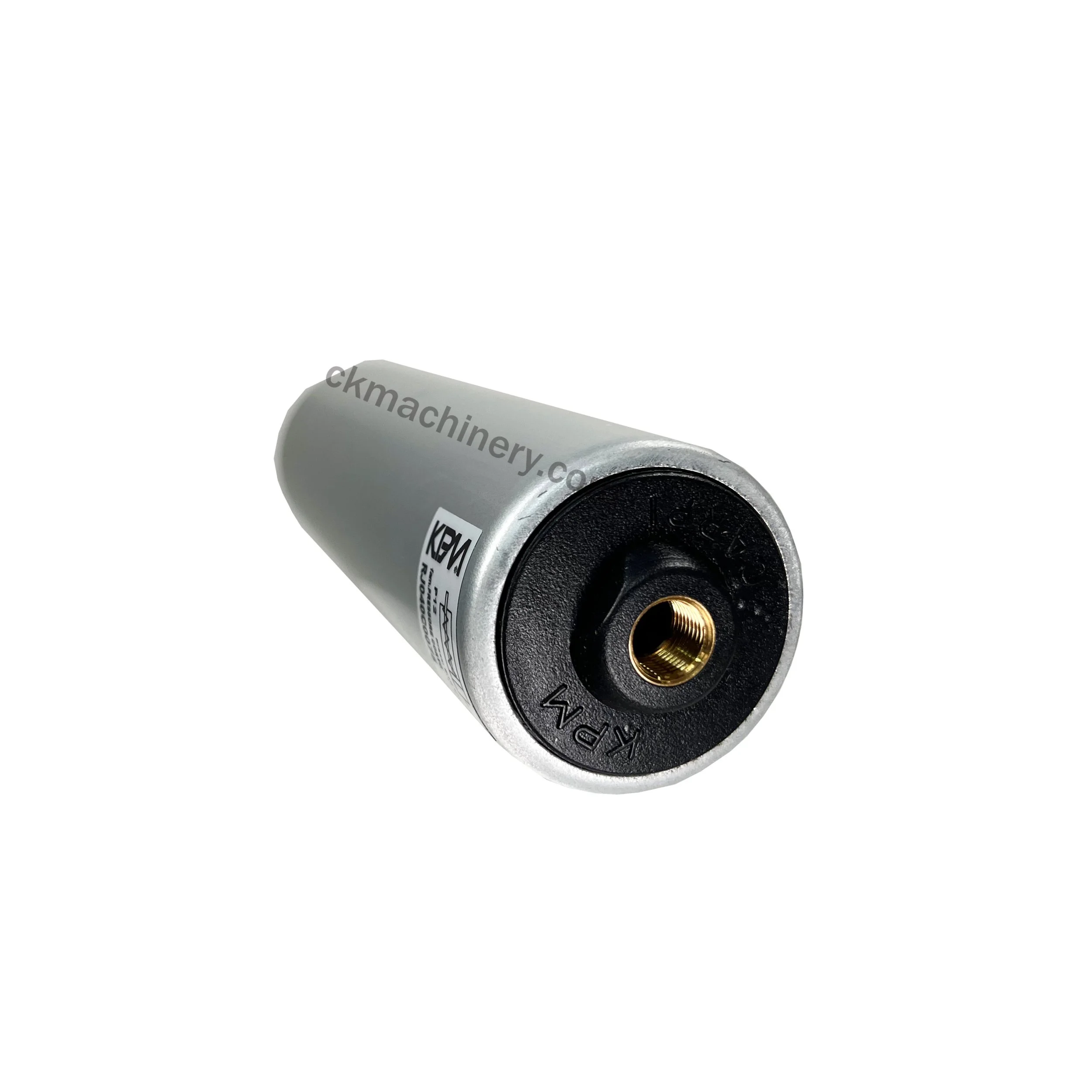

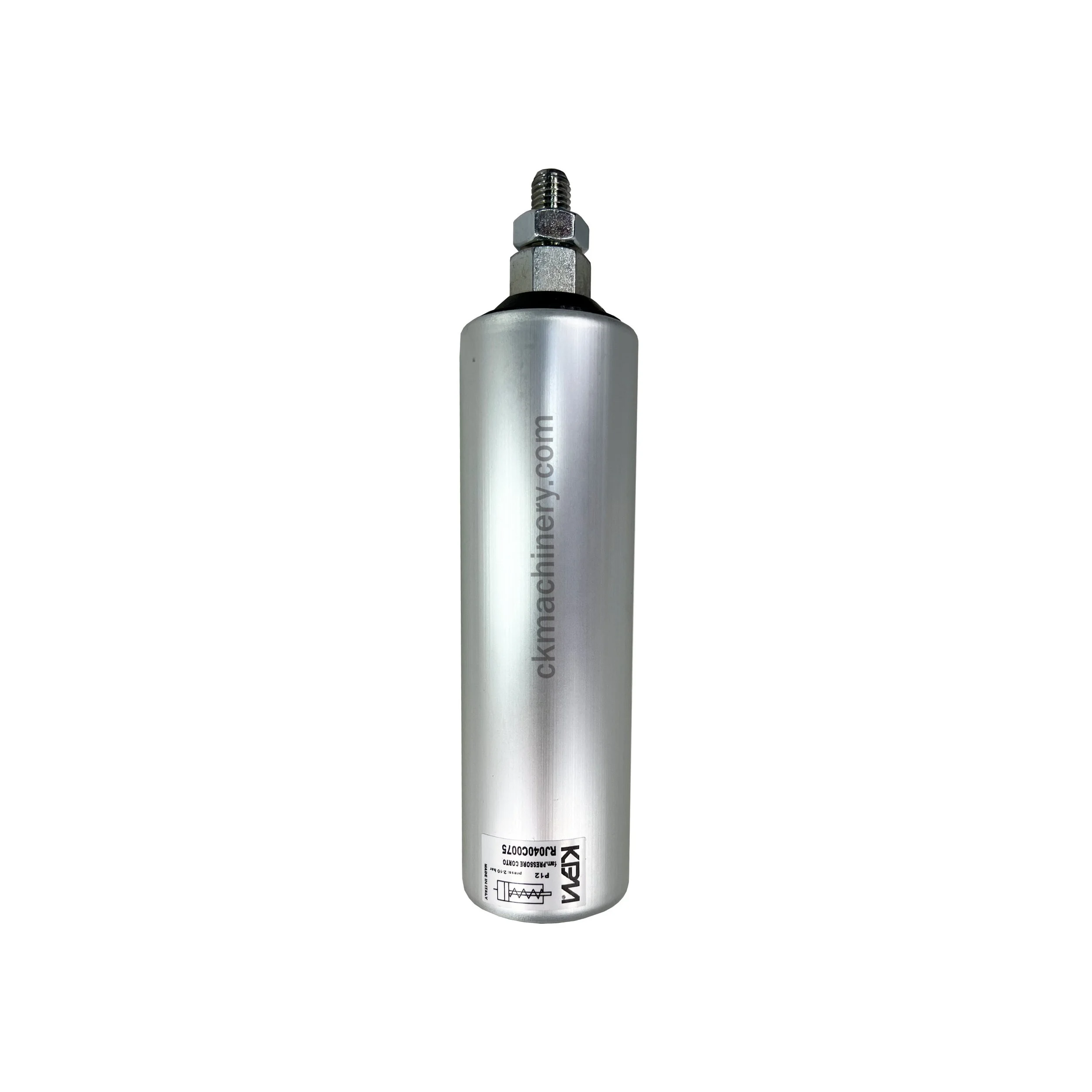

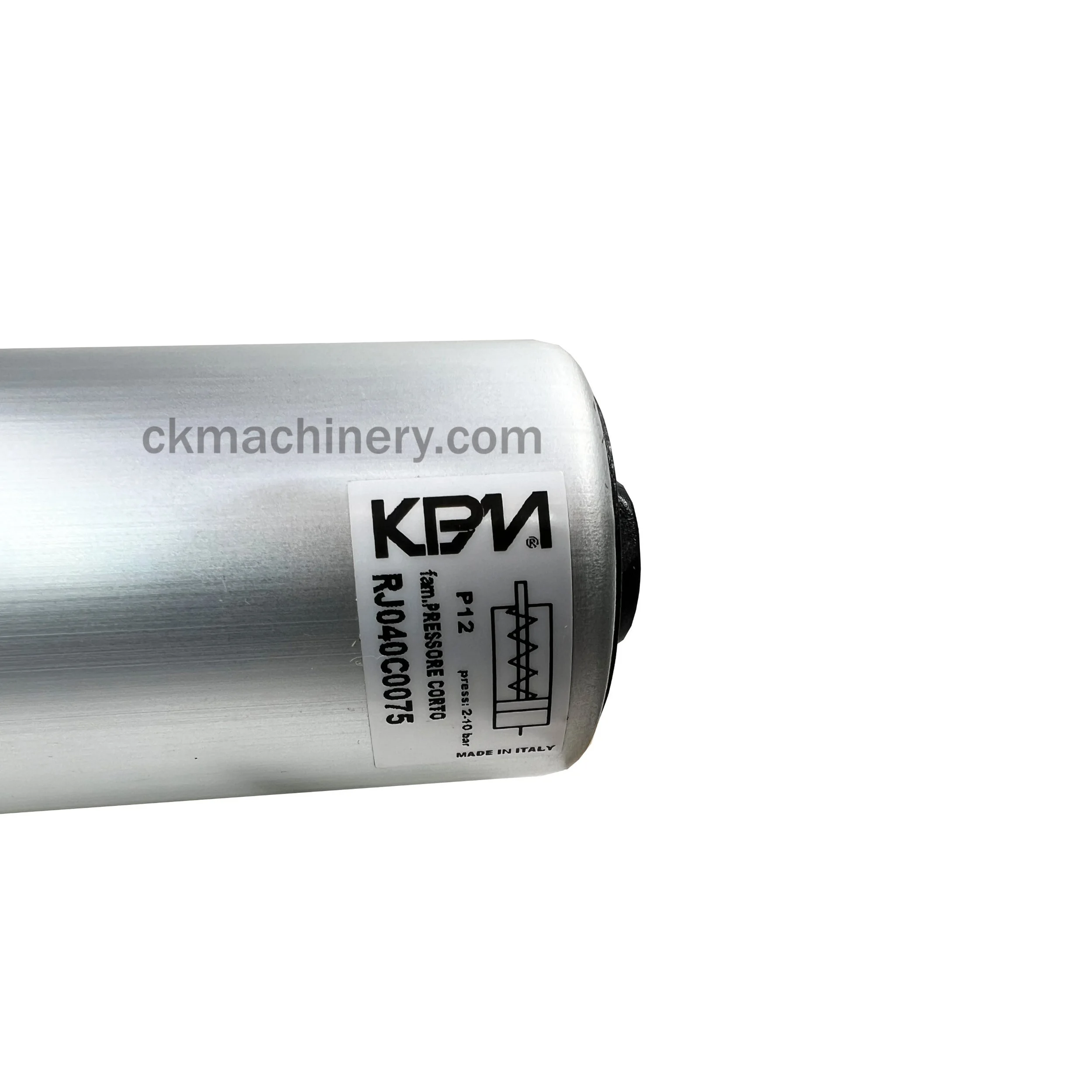

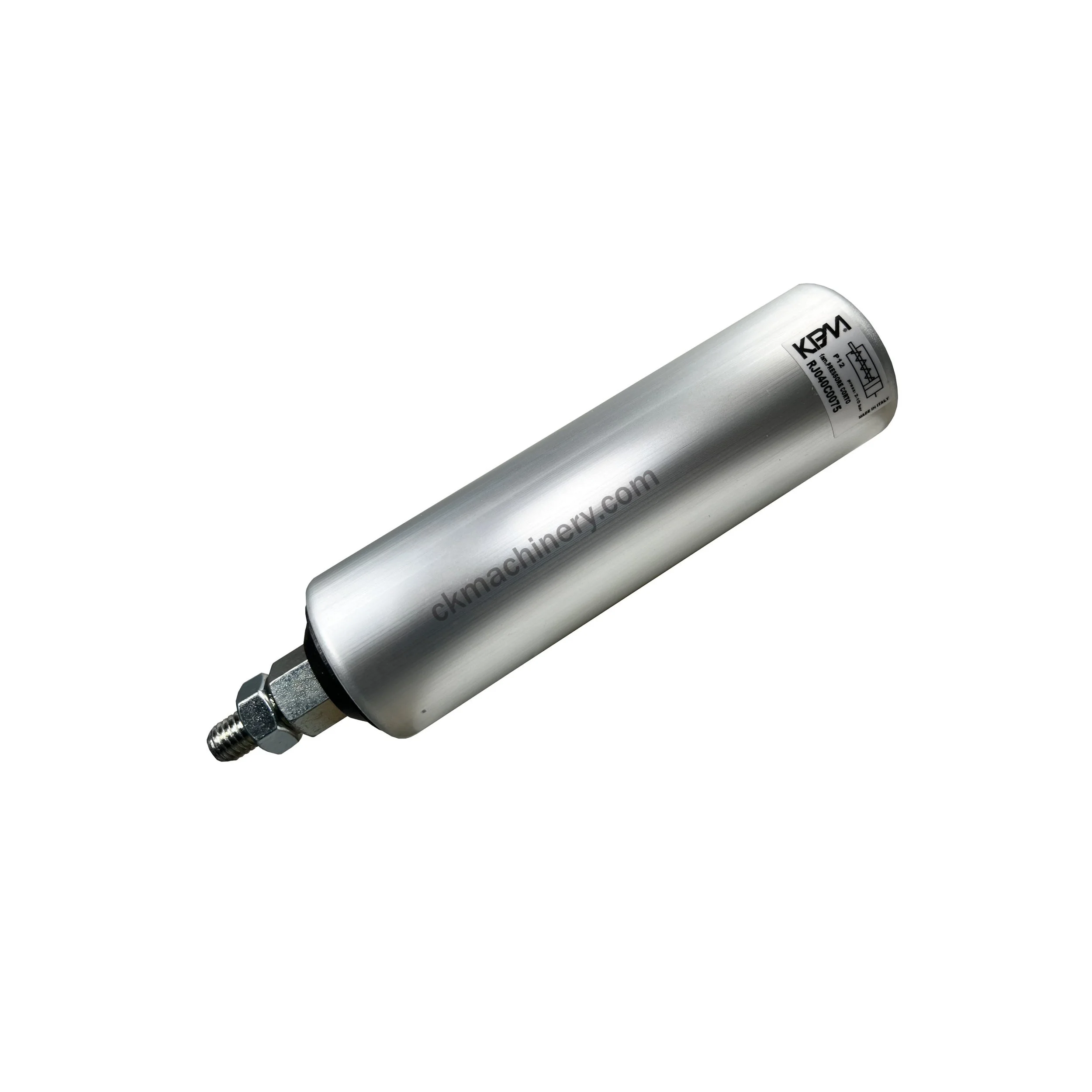

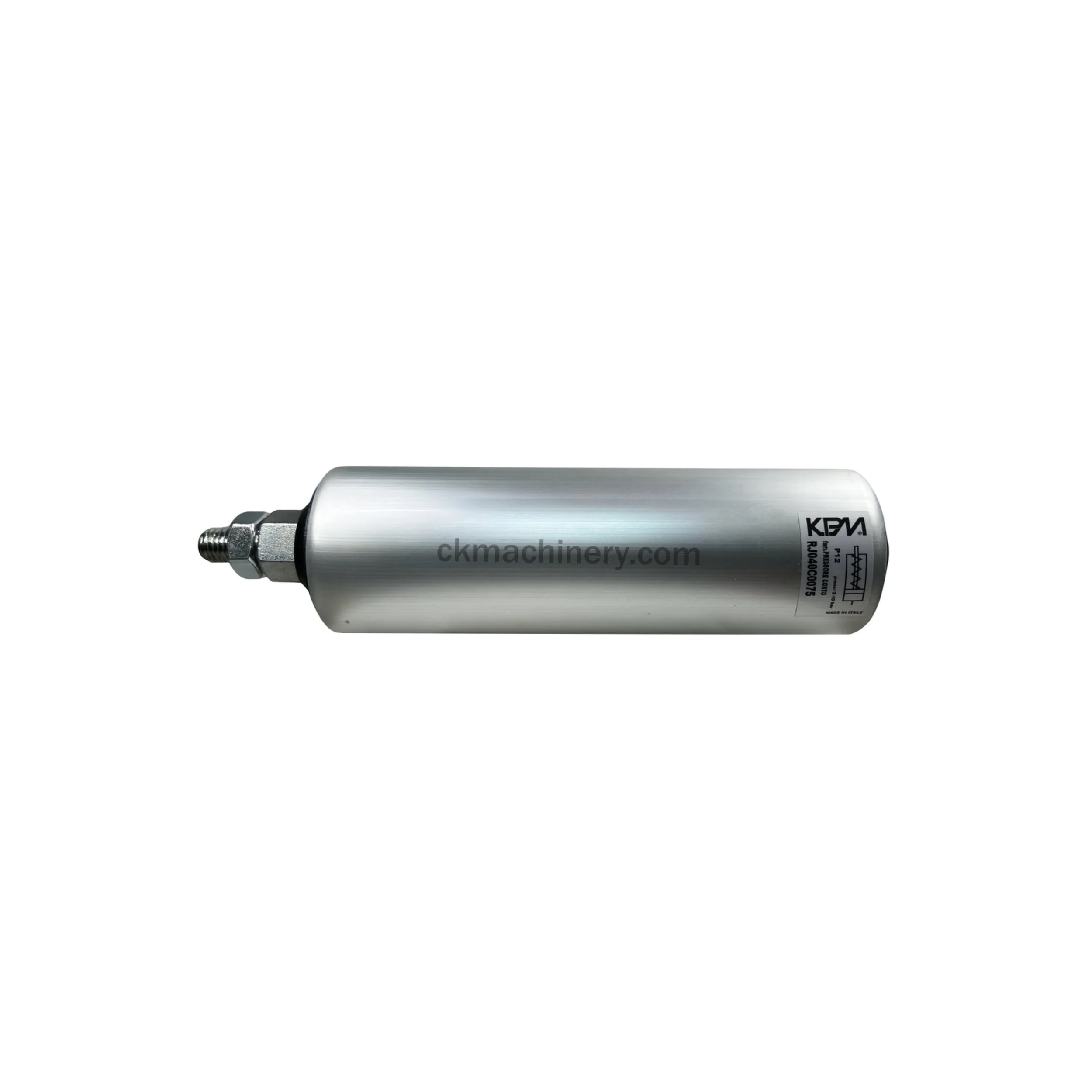

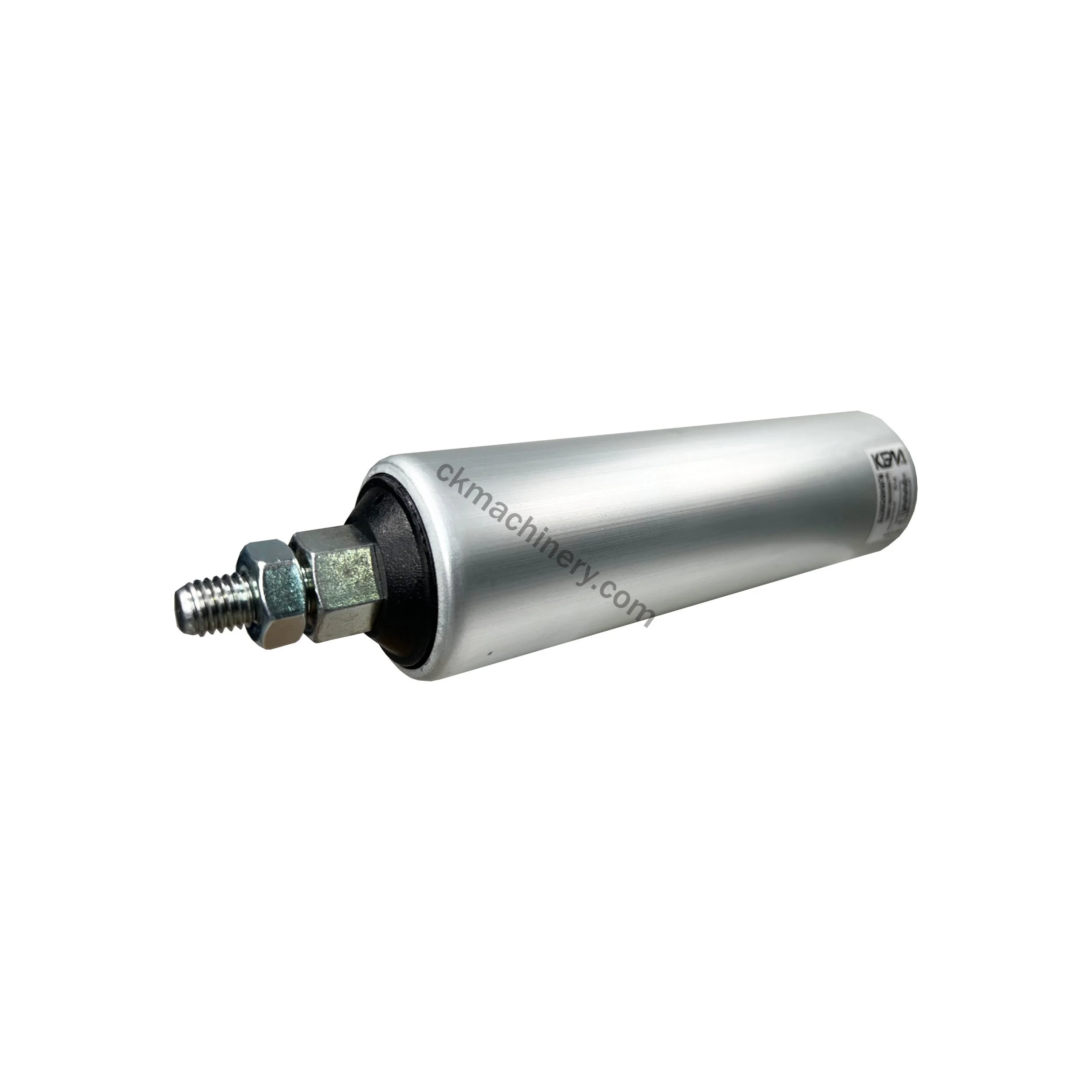

KPM Clamp Cylinder 45mm Dia 155mm Short







KPM Clamp Cylinder 45mm Dia 155mm Short

£55.99

Quantity:

NON STANDARD 45mm DIA

KPM Carpi Hex Rod 155mm Long Clamp Cylinders RJ040C0075

Will Measure Approx 200mm Long end to end with a clamp pad attached

KPM Single Acting Spring Return

Clamp Cylinder 45mm OD x 75mm stroke

Approx 150mm Body Length

M10 Male Threaded

45mm Dia
Body approx 155mm
75mm Rod Stroke
Hexagonal non Rotating Rod
M10 Male Threaded (Takes a M10 Female Clamp Pad)
1/8 Bsp Air Port
Single Acting Spring Return

Commodity Code: 84123100

Made in Italy

Clamp Pads to Suit:

40mm dia M10 Female Rubber Clamp Pads

All Prices Plus VAT and Delivery

NON STANDARD 45mm DIA

KPM Carpi Hex Rod 155mm Long Clamp Cylinders RJ040C0075

Will Measure Approx 200mm Long end to end with a clamp pad attached

KPM Single Acting Spring Return

Clamp Cylinder 45mm OD x 75mm stroke

Approx 150mm Body Length

M10 Male Threaded

45mm Dia
Body approx 155mm
75mm Rod Stroke
Hexagonal non Rotating Rod
M10 Male Threaded (Takes a M10 Female Clamp Pad)
1/8 Bsp Air Port
Single Acting Spring Return

Commodity Code: 84123100

Made in Italy

Clamp Pads to Suit:

40mm dia M10 Female Rubber Clamp Pads

All Prices Plus VAT and Delivery
